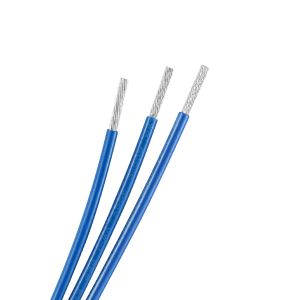

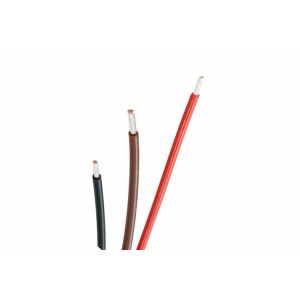

AWM10362 26AWG insulated wire
Specifications:
Nominal voltage: 600V
Temperature range: 250℃
Standard: UL 758
Insulation:PFA
Conductor: Nickel-plated copper wire
Product dimensions:
| Conductor | Insulation | Max.cond
resistance
(Ω/km) | Unit Length
(m)(Ft) |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) |
| 30 | 1/0.26 | 0.26 | 0.305 | 0.87 | 361 | 610/2000 |
| 7/0.10 | 0.30 | 0.91 |
| 28 | 1/0.32 | 0.32 | 0.305 | 0.93 | 227 | 610/2000 |
| 7/0.12 | 0.36 | 1.38 |
| 26 | 7/0.16 | 0.48 | 0.305 | 1.09 | 143 | 610/2000 |
| 19/0.10 | 0.48 | 1.11 |
| 24 | 1/0.50 | 0.50 | 0.305 | 1.11 | 89.3 | 610/2000 |
| 7/0.20 | 0.60 | 1.21 |
| 19/0.12 | 0.60 | 1.21 |
| 22 | 1/0.65 | 0.65 | 0.33 | 1.31 | 56.4 | 305/1000 |
| 7/0.254 | 0.76 | 1.42 |
| 19/0.15 | 0.75 | 1.41 |
| 20 | 1/0.81 | 0.81 | 0.33 | 1.47 | 35.2 | 305/1000 |
| 7/0.31 | 0.93 | 1.59 |
| 19/0.19 | 0.93 | 1.59 |
| 18 | 1/1.02 | 1.02 | 0.33 | 1.68 | 22.2 | 305/1000 |
| 7/0.39 | 1.17 | 1.83 |
| 19/0.235 | 1.17 | 1.83 |
| 16 | 1/1.30 | 1.30 | 0.33 | 1.96 | 14 | 305/1000 |
| 7/0.49 | 1.47 | 2.13 |
| 19/0.30 | 1.50 | 2.16 |
| 14 | 19/0.37 | 1.85 | 0.33 | 2.51 | 8.78 | 305/1000 |
| 12 | 19/0.47 | 2.35 | 0.33 | 3.01 | 5.53 | 305/1000 |
| 10 | 19/0.61 | 3.05 | 0.33 | 3.71 | 3.476 | 305/1000 |
FAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3, What’s the payment terms?
LC, TT, Western Union, Money Gram and PayPal
4, What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it
within one day.
We will arrange the delivery date as your requirement while the
Bulk Production.
5, How to visit your factory/company?
We are located in Shenzhen City, Guangdong Province, closed to
Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive
away. Convenient for visit.
Service
Shipment:
1. by express
2. by sea
3. by air plane
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have
a good cooperation!
Packaging : Hard cardboard carton ( Customizable)
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
