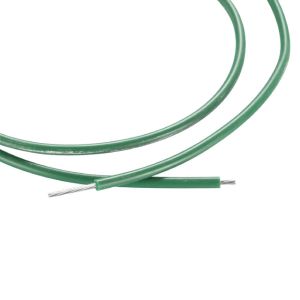

Wire harness lead wire PVC insulated copper wire UL1015 14awg wire
Specification:
Rated voltage: 600V
Rated temperature: 105C
UL standard: UL758
Applications: this PVC insulation wire widely sued for motors,
transformers, fluorescent ballasts and fixtures, switchboards,
panels, controls, rectifiers and electronic circuits.
Cable dimensions:
| Conductor | Insulation | Max.Cond Resistance | Unit length |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) | (Ω/KM) | (M)(Ft) |
| 30 | 7/0.10 | 0.30 | 0.80 | 1.90 | 347 | 305/1000 |
| 28 | 7/0.127 | 0.38 | 1.98 | 218 |
| 26 | 7/0.16 | 0.48 | 2.08 | 138 |
| 24 | 11/0.16 | 0.61 | 2.21 | 85.9 |
| 22 | 17/0.16 | 0.76 | 2.36 | 54.3 |
| 20 | 21/0.18 | 0.95 | 2.55 | 33.9 |
| 18 | 34/0.18 | 1.21 | 2.81 | 21.4 |
| 16 | 26/0.254 | 1.50 | 3.10 | 13.5 |
| 14 | 41/0.254 | 1.89 | 3.49 | 8.45 |
| 12 | 65/0.254 | 2.37 | 3.97 | 5.31 |
| 10 | 105/0.254 | 3.02 | 4.62 | 3.343 |
| 9 | 133/0.254 | 3.39 | 4.99 | 2.652 |
| 8 | 133/0.280 | 3.75 | 1.15 | 6.05 | 2.102 |
| 6 | 84/0.45 | 4.79 | 1.53 | 7.85 | 1.323 |
| 4 | 133/0.45 | 6.02 | 9.08 | 0.8315 |
| 2 | 212/0.45 | 7.60 | 10.66 | 0.5231 |
Cable details:
Price term:
EXW, FOB, CIF
Payment terms:
LC, TT, Western Union and PayPal
Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Why Choose Us?
1. Full experience of 20 years in manufacturing silicone cable,
cable, xlpe cable, mica cable and wire harness.
2. ISO9001:2015, ISO14001:2015, IATF 16949:2016 member
3. Strong R&D Team to design and test products
4. Strict quality control process with strict standards
5. certifications for our products including UL, cUL, VDE, CSA, CCC
and environmental test report: RoHS, REACH
6. Free samples if have samples in stock
7. Several different payment methods, like T/T, L/C, Western Union,
Paypal
8. Fast lead time
9. Quick after-sale technical advice and guidance
